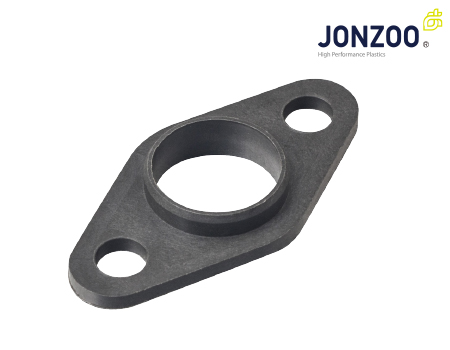

FLB 法兰轴承
FLB 法兰轴承
SHARE
产品特性
●应用于DH塑料卡箍轴承无法被定位的场合。对配合孔的精度要求较低。螺栓固定无滑落风险
● 免维护，自润滑
● 螺丝固定安全可靠
● 适用于旋转、摇摆、直线运动
●对安装孔精度无要求

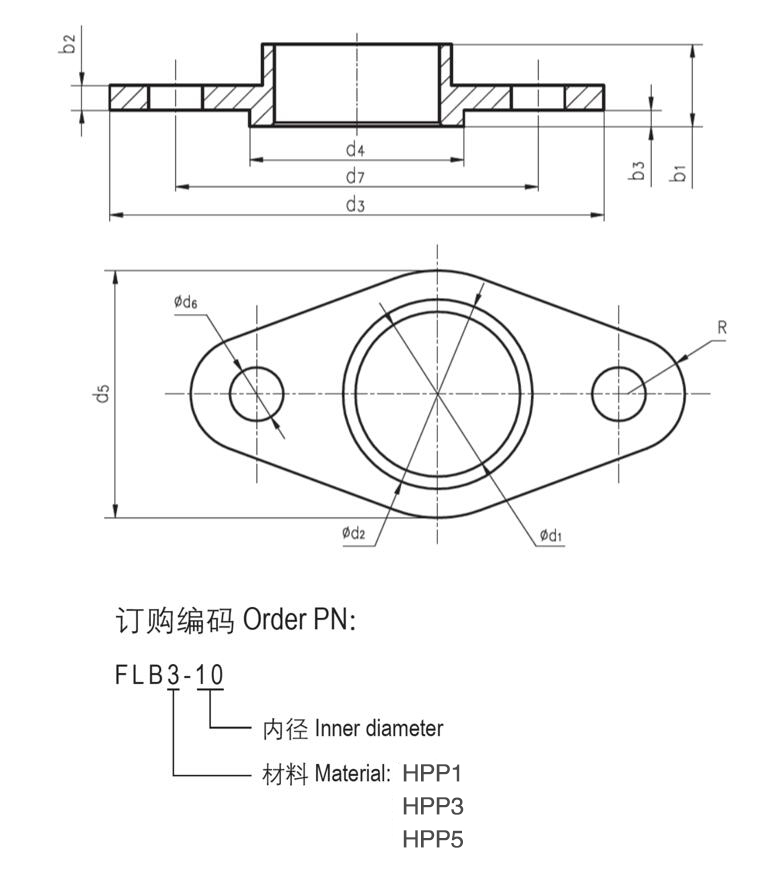

结构设计
| FLB 法兰轴承内外设计为无需外径压配合既符合轴承配合 使用尺寸，故对配合座孔精度无特殊要求；采用螺丝固定 轴承，使得轴承在座孔无法确保加工精度时更安全可靠地 长久运行。 | FLB flange bearing is designed without housing fixture, no tolerance requirement for housing. With the bolt fixture structure, the bearings are reliably operated when housing is not possible to be dedigned. |
|---|
材料设计
| FLB 法兰轴承采用坚固耐用的HPP3 作为标准材料，轴承 具较好的自润滑性能和长期的耐磨性能；可以完全干运行； 同时我们可提供低摩擦系数材料HPP3、耐高温达250℃的 材料HPP5 以及符合FDA 食品安全等级材料HPP20 制成法 兰轴承。 | FLB is made from HPP3 material which is a solid material with good self-lubricating performance and anti-wear feature suitable for dry operation conditions. At the same time, HPP also provides flange bearings with different material such as low friction HPP3, high temperature material HPP5 and FDA approved etc. |
|---|
安装设计
| 法兰轴承设计采用螺丝固定使得轴承在长期运动中更为安 全可靠。虽然我们设计对轴承配合座孔精度无要求，但如 需要获得最佳的使用性能JONZOO 推荐配合座孔为H7 公 差。 |
The bolt fixture designation of the flanged bearing enaures a long term reliable opration of the bearings. Although there is no matching housing tolerance requirement, a better operation condition could be achieved if a recommended housing tolerance of H7 is available. |
|---|
