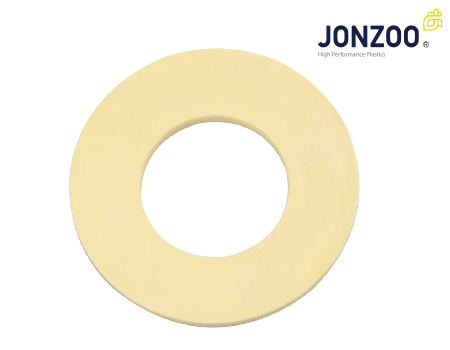

DH塑料板簧
DH塑料板簧
SHARE
产品特性
●工程塑料耐磨调整垫片。应用于轴向配合存在不可控间隙的调整降低运动过程中的振动和噪音
● 补偿轴向间隙和加工公差
● 吸震和降低噪音
● 免维护，自润滑
●耐腐蚀、质量轻
结构设计
| DH 塑料板簧轴向平面被设计成了凹凸面，从而使得原先的 平面垫片变成了既有垫片功能由能调整轴向配合间隙和加 工误差，使得设备运行过程中更加平稳和安静。 | DH plastic flat spring is designed with a bump axial surface for the purpose of compensates the axial fitting and machining tolerance in addtion to function as a normal washer. Therefore the operation mechanism could be more stable and with less noise. |
|---|
材料设计
| DH 塑料板簧标准设计采用了耐磨专家HPP3，使得塑料板 簧在确保弹力的同时具有极好的耐磨性能。当然，我们也 可提供耐温高达250℃的HPP5 以及符合FDA 食品安全等 级的HPP20 材料制成。 | DH plastic flat spring is made from the professional wear resistance material HPP3 which provides good wear resistance and excellent spring feature. At the same time, We could provide the spring washer with high temperaturelup to 250℃ material HPP5 and FDA approved material HPP20. |
|---|
安装设计
| 一般为了调整配合间隙直接采用一片塑料板簧即可达到效 果；当需要调整的间隙较大时，可将塑料板簧成组安装， 即面对面或背靠背安装，此时整体板簧的弹力和一个板簧 的弹力相同，但挠度和塑料成正比增加；如需要增加弹簧 的弹力，可将塑料板簧平行叠装成弹簧组。 | In order to adjust the fitting clearance, a singe flat spring is usually inserted. For bigger clearance ajustment, a goup of flat springs combined with back to back or face to face is also a good solution. if a higher elastic characteristic is needed, piling the flat springs parallel and assembles into the required position. |
|---|
