KGS 薄壁轴承
KGS 薄壁轴承
SHARE
产品特性
●快速安装的薄壁塑料轴承。采用尺寸适应性较好的 HPP2材料制成
●同样可提供耐磨性能更为出色的 HPP4 材料
●免维护，自润滑
●侧面开槽设计，易于安装
●开槽设计可补偿材料膨胀
●适用于旋转、摇摆运动
●对安装孔精度要求较低

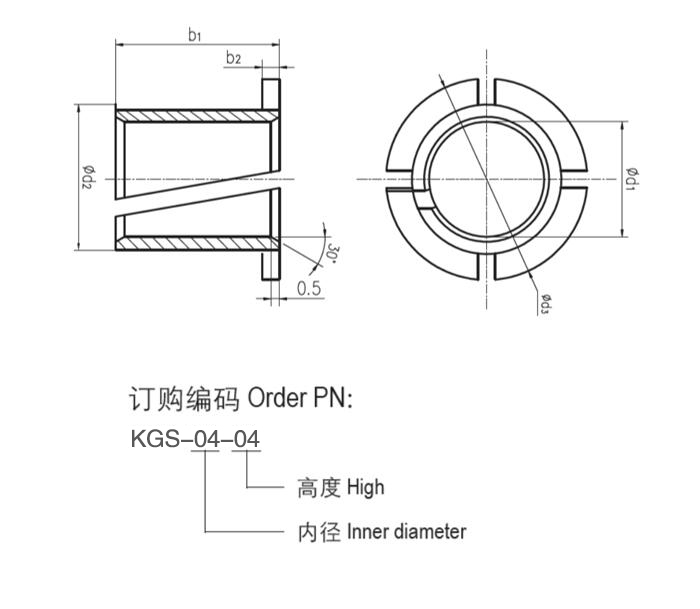

结构设计
| KGS 薄壁塑料轴承采用了比标准型塑料轴承更薄的壁厚设计，狭小的安装空间变得可能。斜开口缝的设计是的轴承装配变得简单。 | KGS thin wall plastic bearing is designed with thinner wall comparing with the standard plastic bearing for those applications with small assembly space. Slipped gap ensures easy assembly of the bearings. |
|---|
材料设计
| KGS 塑料卡箍轴承是采用耐磨性较好的 HPP2 材料制成，轴承具有良好的自润滑性能，可以完全干运行；当然。由于 HPP2 对各种润滑剂具有良好的抗性，所以使用过程中额外的润滑剂也是被允许的。 | kGS Plastic Clip Bearing is made from HPP2 material which is a good wear resistance polymer.The bearing self-lubricant performance is excellent for dry operation conditions. At the same time, comtinuous lubricating is allowed during the operation because this material is also with good isolation feature against the most common lubricants. |
|---|
安装设计
| 薄壁塑料轴承螺旋形的斜槽可以保证他能被很容易地用手直接压入到配合座孔中。这个斜槽也能够补偿圆周方向的膨胀。因此，轴承仍有可能保持较小的间隙。薄壁塑料轴承的推荐使用座孔公差为H7，可用于最大为 H13 公差场合；薄壁塑料轴承允许在座孔中旋转。 | The spiral shape slip gap could not only make the bearing easy to be pressed into the metal housing，but also help to compensate any possible material expansion caused by the squeeze derived from the pressing. The recommended housing tolerance is H7 while the bearing could fit with the housing tolerance range up toH13. The bearing is allowed to be ratating in the housing after assembling. |
|---|
