产品特性
●专门为金属薄板配合开发的产品。安装简易。使用避震
和耐磨性能相结合的HPP2 材料制成。可提供耐高温和耐腐
蚀材料HPP5 制成的轴承
●免维护，自润滑
●侧面开槽设计，易于安装
●开槽设计可补偿材料膨胀
●双法兰设计更安全
● 适用于旋转和直线运动
● 对安装孔精度要求较低

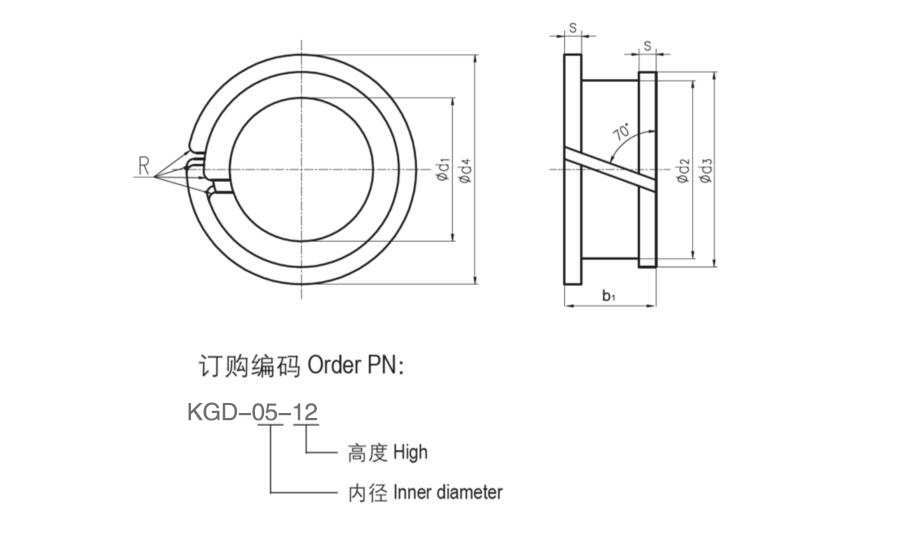

结构设计
| KGD 塑料卡箍轴承是采用耐磨性较好的 HPP2 材料制成，轴承具有良好的自润滑性能，可以完全干运行；当然。由于 HPP2 对各种润滑剂具有良好的抗性，所以使用过程中额外的润滑剂也是被允许的。 | KGD Plastic Clip Bearing is made from HPP2 material which is a good wear resistance polymer.The bearing self-lubricant performance is excellent for dry operation conditions. At the same time, comtinuous lubricating is allowed during the operation because this material is also with good isolation feature against the most common lubricants. |
|---|
材料设计
| KGD 塑料卡箍轴承是采用耐磨性较好的 HPP2 材料制成，轴承具有良好的自润滑性能，可以完全干运行；当然。由于 HPP2 对各种润滑剂具有良好的抗性，所以使用过程中额外的润滑剂也是被允许的。 | KGD Plastic Clip Bearing is made from HPP2 material which is a good wear resistance polymer.The bearing self-lubricant performance is excellent for dry operation conditions. At the same time, comtinuous lubricating is allowed during the operation because this material is also with good isolation feature against the most common lubricants. |
|---|
安装设计
| 轴承被安装时，从轴承法兰边较小的一侧压入到法兰边较 大侧为止。螺旋形的斜槽可以保证它能被很容易地压入到 金属薄板中。这个斜槽也能够补偿圆周方向的膨胀。因此， 轴承仍有可能保持较小的间隙。卡箍轴承的推荐使用座孔 公差为H7，可用于最大为H13 公差场合；卡箍轴承允许在 座孔中旋转。 | During the asembly，the bearing is pressed into the housing from the smaller flange end until the bigger flange end is pressed into the position. The spiral shape slip gap could not only make the bearing easy to be pressed into the metal housing, but also help to compensate any possible material expansion caused by the squeeze derived from the pressing. Therecommended housing tolerances is H7 while the bearing could fit with the housing tolerance range up to H13. The bbaring is allowed to be rotating in the housing after assembling. |
|---|
